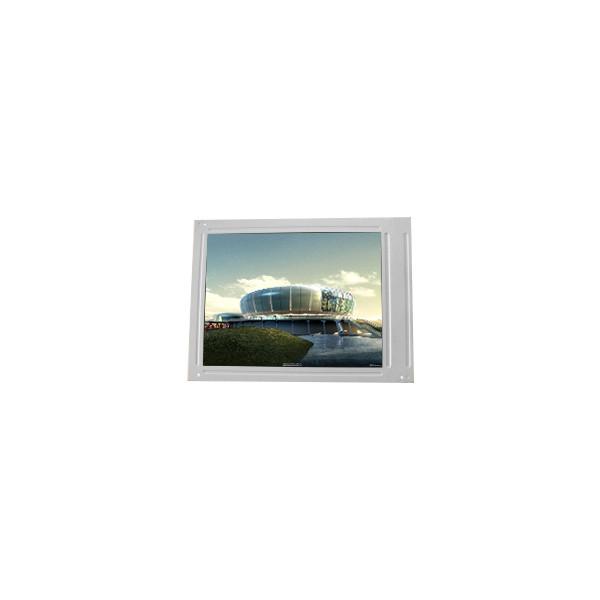

    5.5 inch LM6Q401 320*240 LCD screen LCD MODULE

    Ask Lasest Price
    Brand Name : Sharp
    Model Number : LM6Q401
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100000 Unit/Units per Month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    5.5 inch LM6Q401 320*240 LCD screen LCD MODULE

    5.5 inch LM6Q401 320*240 LCD screen LCD MODULE


    LM6Q401 LCD Panel Product details :


    BrandSharp
    Model P/NLM6Q401
    Diagonal Size5.5"
    Panel TypeCSTN-LCD, LCM
    Resolution320(RGB)×240, QVGA 73PPI
    Pixel FormatRGB Vertical Stripe
    Active Area111.3(W)×83.5(H) mm
    Bezel Opening116.0(W)×88.0(H) mm
    Outline(mm)146(W)×106.6(H)
    Luminance200 (Typ.)(cd/m²)
    Viewing Angle-
    Good View at-
    Color Depth4096
    Mass370g (Typ.)
    Refresh Rate-
    Treatment-
    Contrast Ratio30 : 1 (Typ.) (TM)
    Work ModeSTN, Normally Black, Transmissive
    Response80 (Typ.)(Tr+Td) ms
    Backlight1 pcs CCFL
    Used forIndustrial
    TouchscreenWithout
    Signal TypeAnalog
    Voltage Supply12.0V (Typ.)
    Max. RatingsStorage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 50 °C
    5.5 inch LM6Q401 320*240 LCD screen LCD MODULE

    LM6Q401 Pre-Order Check:
    Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
    Note:
    Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

    LM6Q401 LCD Panel Shipping and Package :

    LM6Q401 Shipping Information:
    Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
    Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
    Shipments will be processed within 3 business days of receiving payment.
    Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
    LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
    Attention to Russian Customers:
    For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
    LM6Q401 About the Goods:
    Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
    While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
    LM6Q401 LCD Panel FAQ :

    Q: Can I pay my order of LM6Q401 via credit card ?

    A: Yes!you can use your credit card through your Paypal account.


    Q: Can You declare my order of LM6Q401 to a lower price in commercial invoice for customs ?

    A: Yes , we can . pls inform us before shipping .


    Q: Can you give me a discount if I need a large quantity of LM6Q401 ?

    A: Of course!If you make a large order, we will give you a discount.


    Q: Do you accept sample orders of LM6Q401 ?

    A: Of course!sample order is welcome !
