Brand Name : | TIANMA |
Model Number : | TM057KDH01-00 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union |
Supply Ability : | 100000 Unit/Units per Month |
Delivery Time : | 7 Days |
Original 5.7 inch For TIANMA 320×240 LCD Screen Display Module Panel TM057KDH01-00
Product details :
TIANMA LCD SCREEN TM057KDH01-00 | |
Manufacturer | TIANMA |
Model Name | TM057KDH01-00 |
Screen Size | 5.7 inch |
Screen Type | LCM , a-Si TFT-LCD |
Pixel Number | 320(RGB)×240 (QVGA) 70PPI |
Arrangement | RGB Vertical Stripe |
Active Area(mm) | 115.2 × 86.4 (H×V) |
Outline(mm) | 144 × 104.6 × 12.8 (H×V×D) |
Bezel Area(mm) | 118.2 × 89.4 (H×V) |
Treatment | Antiglare, Hard coating (3H) |
Luminance | 400 cd/m² (Typ.) |
Contrast Ratio | 500 : 1 (Typ.) (TM) |
Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) |
Response | 20 (Typ.)(Tr+Td) ms |
Good View at | 6 o'clock |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K 50% NTSC |
Backlight | 5S3P WLED , 50K hours , No Driver |
Mass | 160g (Typ.) |
Used for | Industrial |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | Parallel RGB (1 ch, 6-bit) , 33 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 70 °C |

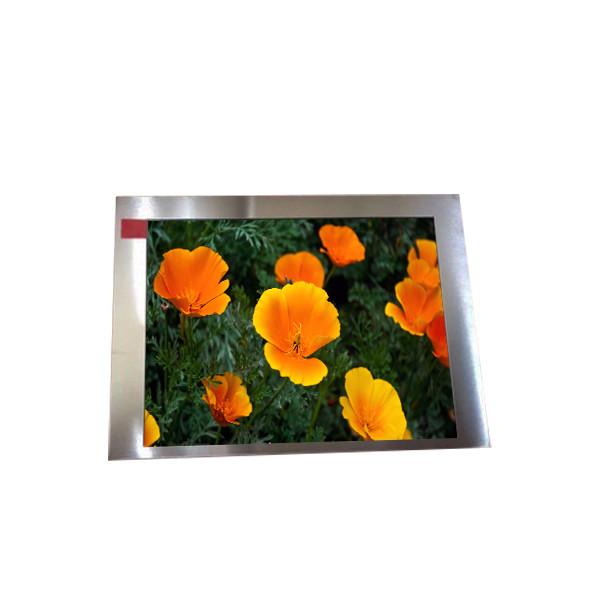

Original 5.7 inch For TIANMA 320×240 LCD Screen Display Module Panel TM057KDH01-00 |
Important tips:
1.All devices be tested before shipping and 100% working well.
2.Please test before installation !!! and then install the machine
after the test is complete.If you have any questions, please
contact us before installation. We are not responsible for any
installation mistakes.
3.LCD is Fragile and easily broken or work unproperly by
installation mistakes.If you are not good at replacing the LCD,
please do it by a professional person or repair shop.
Shipping and Package :
Shipping:
1, shipping via DHL / FedEx / UPS /TNT . Fast , Safe , Good service
.
2, We will send out your goods with 1-3 working days after payment
done .
3, Normally , you can get the goods within 3 - 7 working days(if
ship by DHL air express) .
4, Please make sure your shipping information ( including address /
post code / phone number / contact person ) are correct before
order . If you want us send it to another address , please inform
us in advance , and leave message in our transaction .
Warranty:
1. We take 90 days warranty from the shipping date , no matter what
quality problem it's .
2 .Please write down our email address and MSN , if you have any
problem pls contact us immediately , we will help you to solve the
prolbem ASAP.
Reminder:
Our price is not including any customs tax / fee in the destination
. You need to pay some tax / fee or not , when the goods get
Clearance Customs in the destination Customs , It depends the laws
in the destination country .
Over 5500 kinds of high quality touchscreen and keypads products
for HMI repair, we sincerely invite you to add our store to your
list. If you have any special needs, pls don't hesitate to contact
us, we will try our best to help you immediately, hope you can have
a glad shopping with us. Best regards!
FAQ:
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of TM057KDH01-00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for TM057KDH01-00 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the TM057KDH01-00 I receive can't work ?
A: The TM057KDH01-00 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
![]() |
