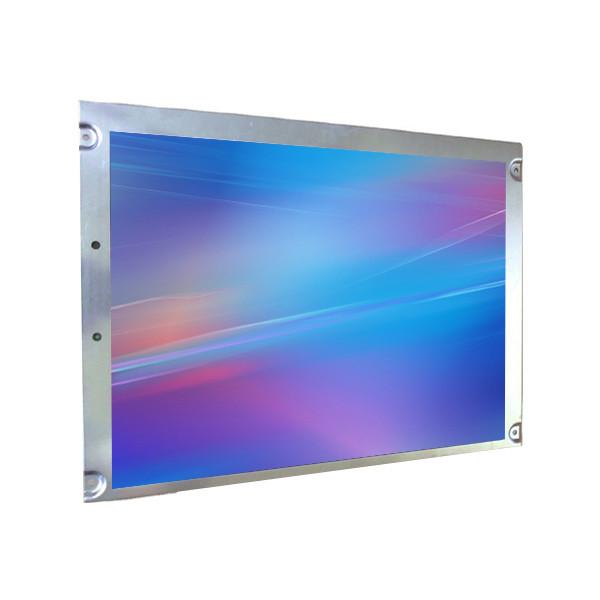

    NL13676AC25-01D 15.6 inch 1366(RGB)×768 lcd panel display 20 pin lvds

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL13676AC25-01D
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100000 Unit/Units per Month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    NL13676AC25-01D 15.6 inch 1366(RGB)×768 lcd panel display 20 pin lvds

    NL13676AC25-01D 15.6 inch 1366(RGB)×768 lcd panel display 20 pin lvds


    Product details :


    NEC LCD Screen NL13676AC25-01D
    manufacturerNEC
    Model NameNL13676AC25-01D
    Screen Size15.6 inch
    Panel typea-Si TFT-LCD, LCM
    Number of pixels1366(RGB)*768, WXGA, 100PPI
    Pixel layoutRGB vertical bar
    Display area344.232(W)*193.536(H) mm
    Viewable area347.53(W)*196.84(H) mm
    physical dimension363.8(W)*215.9(H) *10.8(D) mm
    Surface treatmentMatte, Hard coating (3H)
    Panel brightness400 cd/m² (Typ.)
    Contrast900:1 (Typ.) (TM)
    Viewing angle80/80/80/80 (Typ.)(CR≥10)
    Operating modeTN, normally white display, transmissive
    Best perspective6 o'clock
    Reaction time3/15 (Typ.)(Tr/Td) ms
    Display color262K/16.7M, 60% NTSC
    type of light sourceWLED, 70K hours, with LED driver
    working frequency60Hz
    touch screenNo touch
    Panel weight800/880g (Typ./Max.)
    Signal interfaceLVDS (1 ch, 6/8-bit), 20 pins, connector
    Drive screen voltage3.3V (Typ.)
    working environmentWorking: -20 ~ 70 °C; Storage: -20 ~ 80 °C
    NL13676AC25-01D 15.6 inch 1366(RGB)×768 lcd panel display 20 pin lvds
