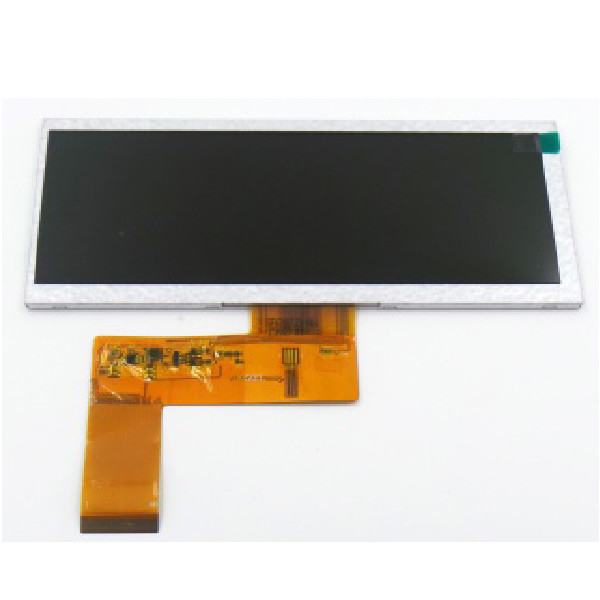

    S065WV03 Stretched Bar LCD A-Si LCD Module TFT 6.5 Inch

    Ask Lasest Price
    Brand Name : CDTECH
    Model Number : S065WV03
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100000 Unit/Units per Month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    S065WV03 Stretched Bar LCD A-Si LCD Module TFT 6.5 Inch

    S065WV03 a-Si TFT lcd Module


    Product details :


    TFT LCD Panel, LCD/LED backlight


    A Grade , 100% New Original


    In Stock

    CDTECH LCD SCREEN S065WV03
    manufacturerCDTECH
    Model NameS065WV03
    screen size6.5 inch (2/3 cut of 7.0")
    Screen typea-Si TFT-LCD , LCM
    Resolution800(RGB)×320 133PPI
    Pixel configurationRGB Vertical Stripe
    Display size154.08(H)×57.28(V) mm
    physical dimension165(H)×72.86(V) mm
    Visual size156.7(H)×60.66(V) mm
    Brightness500cd/m² (Typ.)
    Contrast500:1 (Typ.) (TM)
    Best angle12 o'clock
    Optical modeTN, Normally White, Transmissive
    Viewing angle65/65/55/65 (Typ.)(CR≥10)
    Responding time10/15 (Typ.)(Tr/Td)ms
    Number of color16.7M 55% NTSC
    Backlight typeWLED [3S7P] , 30K hours , W/O Driver
    Panel weightTBD
    Apply toIndustrial / Stretched Bar LCD
    Refresh rate60Hz
    Touch functionNo touch
    signal systemParallel RGB (1 ch, 8-bit) 40 pins FPC
    Supply voltage3.3/3.3V (Max.)(VDD/AVDD)
    Maximum ratingOperating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
    S065WV03 a-Si TFT lcd Module

    Why Choose Us :


    According to customers' various requests,


    we can match all accessories which inclusive of driver board,


    touch-screen, LED backlight & LVDS cables. TFT LCD,


    LCD panel, LCD display,LCD screen, LCD monitor,


    LCD module from 2.2 inch to 88 inch.


    Quality promised, 100% original,fast delivery,


    also enjoy one year guarantee !


    Shipping and Package :


    1)All of our product will be testing before shipping. So you can be assured the quality of our products


    2) All Panels are packed with new and firm carton, capable of long distance transportation.


    3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT


    4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.


    FAQ :


    Q: Can you give me a discount if I need a large quantity of S065WV03 ?

    A: Of course!If you make a large order, we will give you a discount.


    Q: Can You declare my order of S065WV03 to a lower price in commercial invoice for customs ?

    A: Yes , we can . pls inform us before shipping .


    Q: How to make payment of S065WV03 ?

    A: We accept T/T , Paypal , western union .


    Q: How long is the warranty ?

    A: We offer 90 days warranty .


    We are one of the professional and experienced suppliers of S065WV03 a-Si TFT lcd Module, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.


    *Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
