21.3 Inch 1600*1200 TFT LCD Screen Panel G213UAN01.0 Medical Tft Display

Shenzhen Yongsheng Innovation Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 21.3 Inch 1600*1200 TFT LCD Screen Panel G213UAN01.0 Medical Tft Display from wholesalers

    Buy cheap 21.3 Inch 1600*1200 TFT LCD Screen Panel G213UAN01.0 Medical Tft Display from wholesalers
    • Buy cheap 21.3 Inch 1600*1200 TFT LCD Screen Panel G213UAN01.0 Medical Tft Display from wholesalers
    • Buy cheap 21.3 Inch 1600*1200 TFT LCD Screen Panel G213UAN01.0 Medical Tft Display from wholesalers

    21.3 Inch 1600*1200 TFT LCD Screen Panel G213UAN01.0 Medical Tft Display

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G213UAN01.0
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100000 Unit/Units per Month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

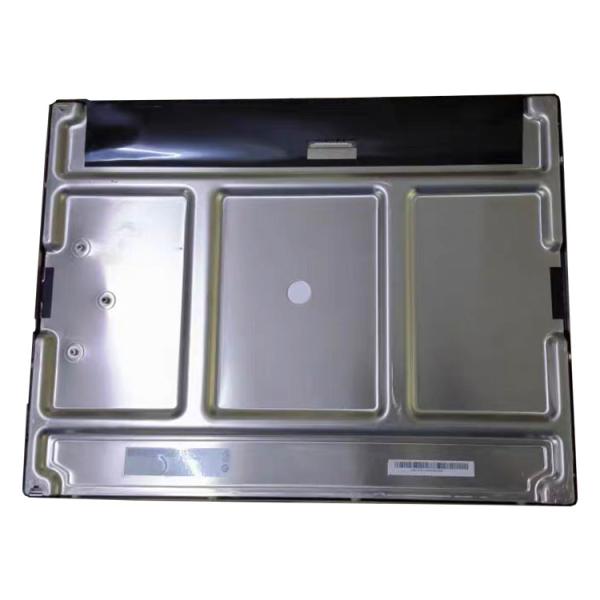

    21.3 Inch 1600*1200 TFT LCD Screen Panel G213UAN01.0 Medical Tft Display

    21.3 Inch 1600*1200 TFT LCD Screen Panel G213UAN01.0 Medical Tft Display


    21.3 Inch 1600*1200 LCD Panel TFT 16.7M Color G213UAN01.0 For Medical Imaging

    G213UAN01.0 Product details :

    AUO LCD Screen G213UAN01.0
    BrandAUO
    Model P/NG213UAN01.0
    Diagonal Size21.3"
    Panel Typea-Si TFT-LCD, LCM
    Resolution1600(RGB)×1200, UXGA 94PPI
    Pixel FormatRGB Vertical Stripe
    Active Area432(W)×324(H) mm
    Bezel Opening436(W)×328(H) mm
    Outline Size456(W)×349.5(H) mm
    SurfaceAntiglare
    Brightness500 cd/m² (Typ.)
    Contrast Ratio1800:1 (Typ.) (TM)
    Viewing Angle89/89/89/89 (Typ.)(CR≥10)
    Display ModeAHVA, Normally Black, Transmissive
    Best View onSymmetry
    Response Time8/8 (Typ.)(Tr/Td)
    Display Colors16.7M 100% sRGB
    Lamp Type13S6P WLED , 50K hours , Without Driver
    Frequency60Hz
    Touch ScreenWithout
    Weight2.30Kgs (Typ.)
    ApplicationIndustrial / Medical Imaging
    Signal InterfaceLVDS (2 ch, 8-bit) , 30 pins Connector
    Input Voltage12.0V (Typ.)
    EnvironmentOperating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
    21.3 Inch 1600*1200 LCD Panel TFT 16.7M Color G213UAN01.0 For Medical Imaging

    G213UAN01.0 Before order:


    Before the order, please confirm whether your machine model matching with this LCD screen, if not sure, please contact us


    G213UAN01.0 Shipping and Package :

    G213UAN01.0 International Orders:


    1.Buyer is responsible for all customs fees and import taxes.

    2.International orders may take several weeks longer than expected to arrive due to delays in customs processing.

    3.And to send to Japan or South Korea via Fedex or DHL , we to declare actual price,the South Korea recipient needs to provide a customs clearance serial number, for example: "P123456789123" . Please provide us with the customs clearance serial number.


    G213UAN01.0 ESTIMATED DELIVERY TIME:


    - Economy: 15-50 days


    - Standard: 10-35 days


    - Expedited: 4-7 days


    G213UAN01.0 FAQ:


    Q: How can I trace my order of G213UAN01.0 ?

    A: we will give you tracking number then you can trace your order from website.


    Q: If I place order now,when will you ship the goods of G213UAN01.0 ?

    A: The order will be shipped within 2-3 working days after received your payment.


    Q: How long is the warranty ?

    A: We offer 90 days warranty .


    Q: Can I pay my order of G213UAN01.0 via credit card ?

    A: Yes!you can use your credit card through your Paypal account.
