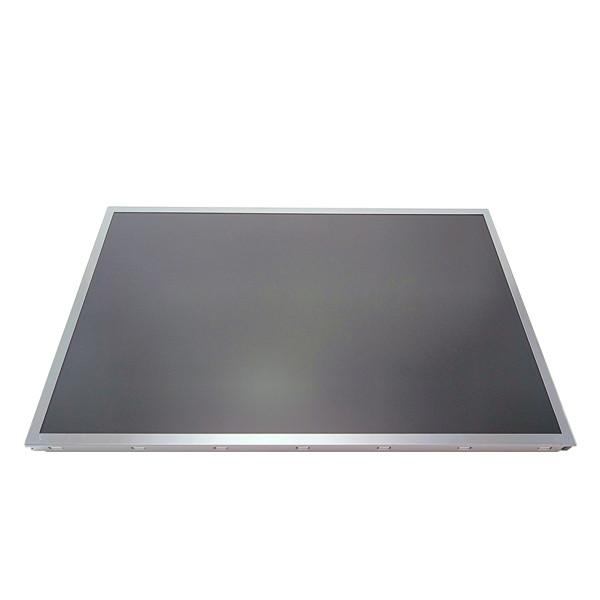

    30 pins NL12880BC16-02F LCD Industrial Display panel

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL12880BC16-02F
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100000 Unit/Units per Month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    30 pins NL12880BC16-02F LCD Industrial Display panel

    30 pins NL12880BC16-02F LCD Industrial Display panel


    NL12880BC16-02F Product details :


    NLT LCD Screen NL12880BC16-02F
    ManufacturerNLT
    Model NameNL12880BC16-02F
    Screen Size10.1 inch
    Panel Typea-Si TFT-LCD, LCM
    Number of pixels1280(RGB)×800, WXGA 149PPI
    Pixel layoutRGB Vertical Stripe
    Active Area216.96(W)×135.6(H) mm
    Bezel Opening220.0(W)×137.1(H) mm
    Outline (mm)235.4(W)×153.8(H) mm
    TreatmentAntiglare, Hard coating (3H)
    Luminance1000 cd/m² (Typ.)
    Contrast Ratio800 : 1 (Typ.) (TM)
    Viewing angle88/88/88/88 (Typ.)(CR≥10)
    Response13/12 (Typ.)(Tr/Td)
    Best View onSymmetry
    Work ModeUA-SFT, Normally Black, Transmissive
    Color Depth262K/16.7M 50% NTSC
    BacklightWLED [4 strings] , 70K hours , W/O Driver
    Mass460/510g (Typ./Max.)
    Used forIndustrial Outdoor High Brightness
    Refresh Rate60Hz
    TouchscreenWithout
    Signal TypeLVDS (1 ch, 8-bit) , 30 pins Connector
    Voltage Supply3.3V (Typ.)
    Max. RatingsOperating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 7.0G (68.6 m/s²)
    30 pins NL12880BC16-02F LCD Industrial Display panel

    NL12880BC16-02F Product Description:


    We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.


    NL12880BC16-02F Contact us:


    All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.


    NL12880BC16-02F Payment Methods :


    We accept T/T, West Union, PayPal , Escrow payment .


    NL12880BC16-02F About Shipping:


    we will test them strictly before shipping.


    we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.


    NL12880BC16-02F Refound or Replacement:


    We accept return back itmes if the goods still remain in their original condition on the warranty time .


    NL12880BC16-02F FAQ:


    Q: How can I trace my order of NL12880BC16-02F?


    A: we will give you tracking number then you can trace your order from website.


    Q: Can you give me a discount if I need a large quantity of NL12880BC16-02F ?


    A: Of course!If you make a large order, we will give you a discount.


    Q: Can I pay my order of NL12880BC16-02F via credit card ?


    A: Yes!you can use your credit card through your Paypal account.


    Q: How long will I receive my goods NL12880BC16-02F ?


    A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.


    NL12880BC16-02F Shippment & Packing
