    105PPI 20 pins NL10276BC24-21L LCD Screen Display

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL10276BC24-21L
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100000 Unit/Units per Month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

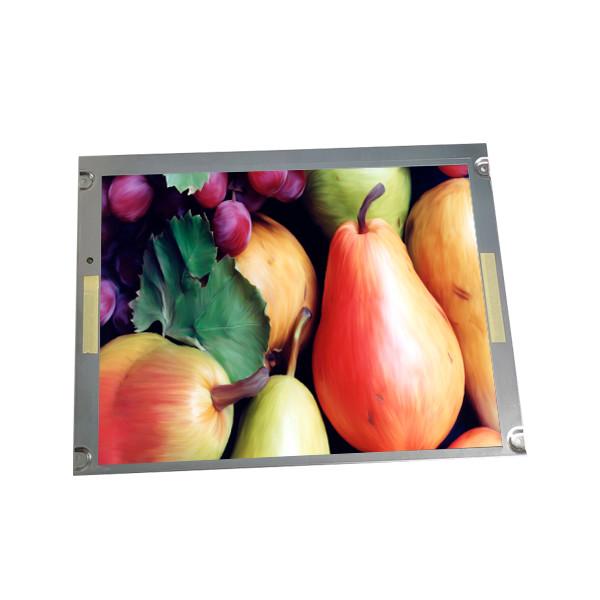

    105PPI 20 pins NL10276BC24-21L LCD Screen Display

    105PPI 20 pins NL10276BC24-21L LCD Screen Display


    NL10276BC24-21L LCD Panel Product details :


    NEC LCD Screen NL10276BC24-21L
    ManufacturerNEC
    Model NameNL10276BC24-21L
    Screen Size12.1 inch
    Panel typea-Si TFT-LCD, LCM
    Number of pixels1024(RGB)*768, XGA, 105PPI
    Pixel layoutRGB vertical bar
    Display area245.76(W)*184.32(H) mm
    Viewable area249.0(W)*187.5(H) mm
    physical dimension260.5(W)*203(H) ×9.2(D) mm
    Surface treatmentClear, Hard coating (3H)
    Panel brightness450 cd/m² (Typ.)
    Contrast900:1 (Typ.) (TM)
    Viewing angle80/80/80/80 (Typ.)(CR≥10)
    Operating modeTN, normally white display, transmissive
    Reaction time3/15 (Typ.)(Tr/Td)
    Display color262K/16.7M, 40% NTSC
    type of light source4 strings WLED, 70K hours, optional
    working frequency60Hz
    Panel weight490/540g (Typ./Max.)
    Signal interfaceLVDS (1 ch, 6/8-bit), 20 pins, connector
    Drive screen voltage3.3V (Typ.)
    working environmentWork: -30 ~ 80 °C; Storage: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²)
    105PPI 20 pins NL10276BC24-21L LCD Screen Display

    NL10276BC24-21L LCD Screen Why choose us?

    We have more than 10 years of experience in the electronics industry and our products are selling well in both domestic and offshore markets.


    1. Bulk orders will be provided to you at an acceptable low price.


    2. Wide range of parts, please visit our store to see more.


    3. Fast Delivery-Most items will be shipped within 24 hours.


    4. Provide extensive after-sales support through messages, emails, etc.


    5. Friendly return policy.


    NL10276BC24-21L LCD Screen Specifications :

    Designed as a seamless replacement for your existing screen, the NL10276BC24-21L LCD screen offers a perfect fit, ensuring compatibility with your device without any compromises in performance or functionality.


    Before making your purchase, we highly recommend examining the provided picture to verify that the NL10276BC24-21L LCD screen matches the size and dimensions of your current speedometer screen. This step is crucial in ensuring a smooth transition and optimal functionality upon installation.


    NL10276BC24-21L LCD Panel Shipping and Package :

    NL10276BC24-21L LCD Screen Quality & Warranty:

    In our commitment to ensuring customer satisfaction, we employ rigorous testing procedures on all LCD (touch screen) products and associated equipment to guarantee their quality. We understand that receiving a faulty product can be frustrating, which is why we take full responsibility for ensuring the quality of every item we provide.


    We recognize that circumstances may vary, and sometimes products may not meet expectations even after the initial inspection.


    Therefore, if you discover any issues after the initial 3-day period and the item has been in your possession for more than 7 days, it will be considered used or second-hand. In such cases, we will still honor our commitment to customer satisfaction by offering a replacement service once the return item is received.


    NL10276BC24-21L L​CD Panel FAQ :


    Q: Can You declare my order of NL10276BC24-21L to a lower price in commercial invoice for customs ?


    A: Yes , we can . pls inform us before shipping .


    Q: How long is the warranty ?


    A: We offer 90days warranty .


    Q: Can I pay my order of NL10276BC24-21L via credit card ?


    A: Yes!you can use your credit card through your Paypal account.


    Q: Can you give me a discount if I need a large quantity of NL10276BC24-21L?


    A: Of course!If you make a large order, we will give you a discount.
